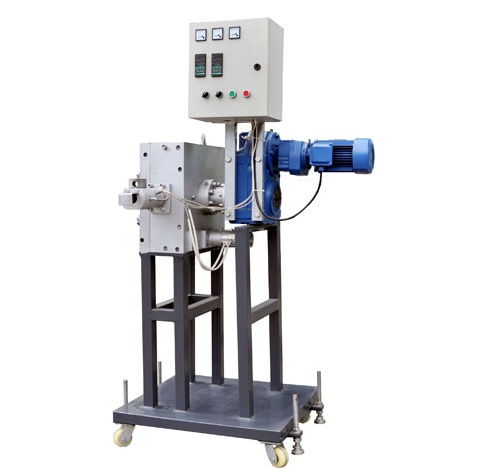

Self-cleaning continuous screen changer

scraper laser type
labor saving
no need changing screen frequently
Product description: This scraper laser type screen changer is a filtration system for the waste plastic recycling and pelletizing, using on kinds of plastic extrusion lines.
INQUIRY

It is a kind of plastic screen changer or filter which does not need to install a filter, a rough filtering equipment.

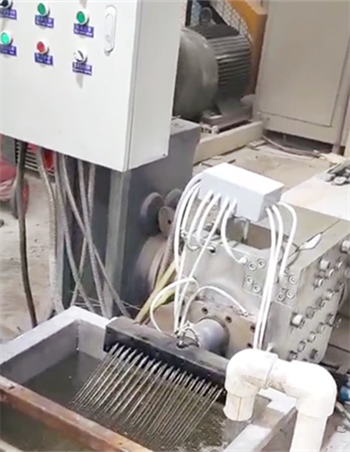

During operation, the impurities left on the screen would be collected by the rotary knives. The collected waste material is redirected to the channel and automatically removed by the valve located in the lower part of the screen changer housing. The screen changer still works in a continuous mode, while the valve is opened temporarily.

Feature: filtering equipment

1.remain constant extrusion line pressure

2. automatic impurities removal, saving labor

3. no need changing screen frequently

Product specifications

Type	Power(kw)	Diameter(mm)	Capacity(t/24h)	Suitable material
GY-NF-300	0.55	300	5-7	kinds of waste plastic and rubber like PP, PE, PS, ABS, HDPE...
GY-NF-350	0.75	350	7-10
GY-NF-400	1.5	400	10-16
GY-NF-500	2.2	500	16-20
